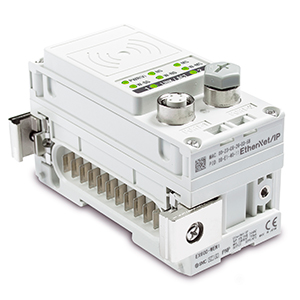

EXW1 / EX600-W Wireless System

EXW1 / EX600-W wireless system is a compact and modular communication solution designed to reduce cabling, installation time, and system downtime in industrial automation. Operating in the 2.4 GHz ISM band with frequency hopping and data encryption,

Technical Specifications

• Model: EXW1 / EX600-W
• Type: Wireless Communication System
• Communication Technology: 2.4 GHz ISM Band
• Communication Range: Up to 100 m
• Protocols: OPC UA, PROFINET, EtherNet/IP, CC-Link, EtherCAT, DeviceNet
• System Type: Modular and Compact Combination
• I/O Capacity: Up to 1280 Inputs / 1280 Outputs
• I/O Units: Up to 9 Input / Output / IO-Link Master Units
• Protection Rating: Up to IP67
