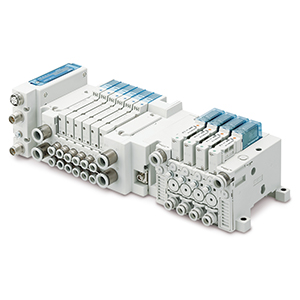

JSY ZK2*A Valve Ejector Manifold

JSY & ZK2*A valve and ejector combination manifold is an all-in-one solution for controlling both positive pressure and vacuum systems. It integrates control valves and vacuum ejectors into a single compact unit, simplifying machine design and reducing installation time. With high flow performance and advanced communication capability,

Technical Specifications

• Model: JSY & ZK2*A
• Type: Valve and Ejector Combination Manifold
• Maximum Stations: Up to 28 (Valves and Ejectors Combined)
• Maximum Valve Stations: Up to 24
• Maximum Ejector Stations: Up to 8
• Maximum Flow Rate: Up to 567 l/min
• Maximum Suction Flow Rate: Up to 67 l/min
• Maximum Vacuum Pressure: -91 kPa
• Feature: Independent Supply and Exhaust Structure
• Communication: Serial Interface Compatible
