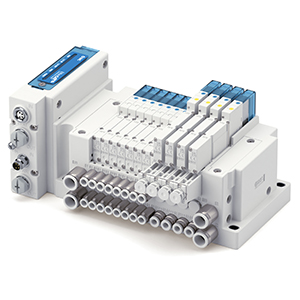

The JSY1000-E valve manifold with integrated ejector system is a compact solution that combines pneumatic control valves and vacuum ejectors into a single unit. It simplifies machine design, reduces installation time, and improves operational efficiency with energy-saving functionality. With support for advanced fieldbus communication and remote control capability, it ensures flexible and reliable performance

Technical Specifications

• Model: JSY1000-E
• Type: Valve Manifold with Integrated Ejector System
• Maximum Valve Flow Rate: 244 l/min
• Maximum Suction Flow Rate: 21 l/min
• Maximum Vacuum Pressure: -90 kPa
• Maximum Stations: Up to 24 (Valves and Ejectors Combined)
• Communication Protocols: EtherNet/IP / EtherCAT / IO-Link / PROFINET
• Feature: Energy Saving Function
• Design: Compact and Lightweight
