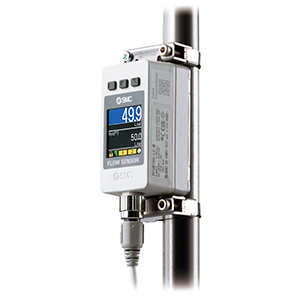

SMC PFUW Clamp-on Type Flow Sensor for Liquids

The SMC PFUW clamp-on flow sensor provides accurate, non-contact liquid flow measurement using ultrasonic technology. It is suitable for fluids such as water, oil, antifreeze, chemicals, and beverages while eliminating pressure loss, clogging, leakage, and contamination.

Technical Specifications

• Model: PFUW
• Brand: SMC
• Type: Clamp-on Flow Sensor
• Detection Method: Ultrasonic
• Application: Liquids (Water, Oil, Chemical, Beverage, Antifreeze)
• Rated Flow Range: 0 to 200 L/min
• Output: IO-Link / NPN / PNP / Analog (Voltage/Current)
• Repeatability: ±2.0% F.S.
• Display: Color Dot-Matrix LCD (90° Rotatable)
• Installation: Clamp-on (No Piping Work Required)
• Consumption: 85 mA or Less
• Protection: IP65 / IP67
