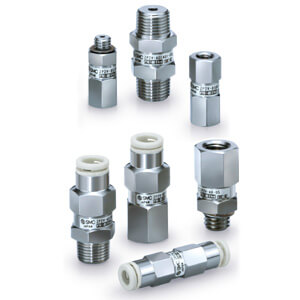

ZP2V Vacuum Check Valve

The ZP2V vacuum check valve is designed to maintain stable vacuum pressure in pneumatic systems by preventing pressure drop when no workpiece is present. Its compact design and multiple connection options make it suitable for a wide range of vacuum handling applications.

Technical Specifications

• Model: ZP2V
• Type: Vacuum Check Valve
• Function: Prevents Vacuum Pressure Loss
• Connection Thread Size: M5 / M6 / M8 / R1/8 / G1/8 / NPT1/8
• Fixed Orifice Size: 0.3 / 0.5 / 0.7 / 1.0 mm
• Operating Pressure: 0 to 0.7 MPa
• Temperature Range: 5°C to 60°C
• Filtration Rating: 40 µm
